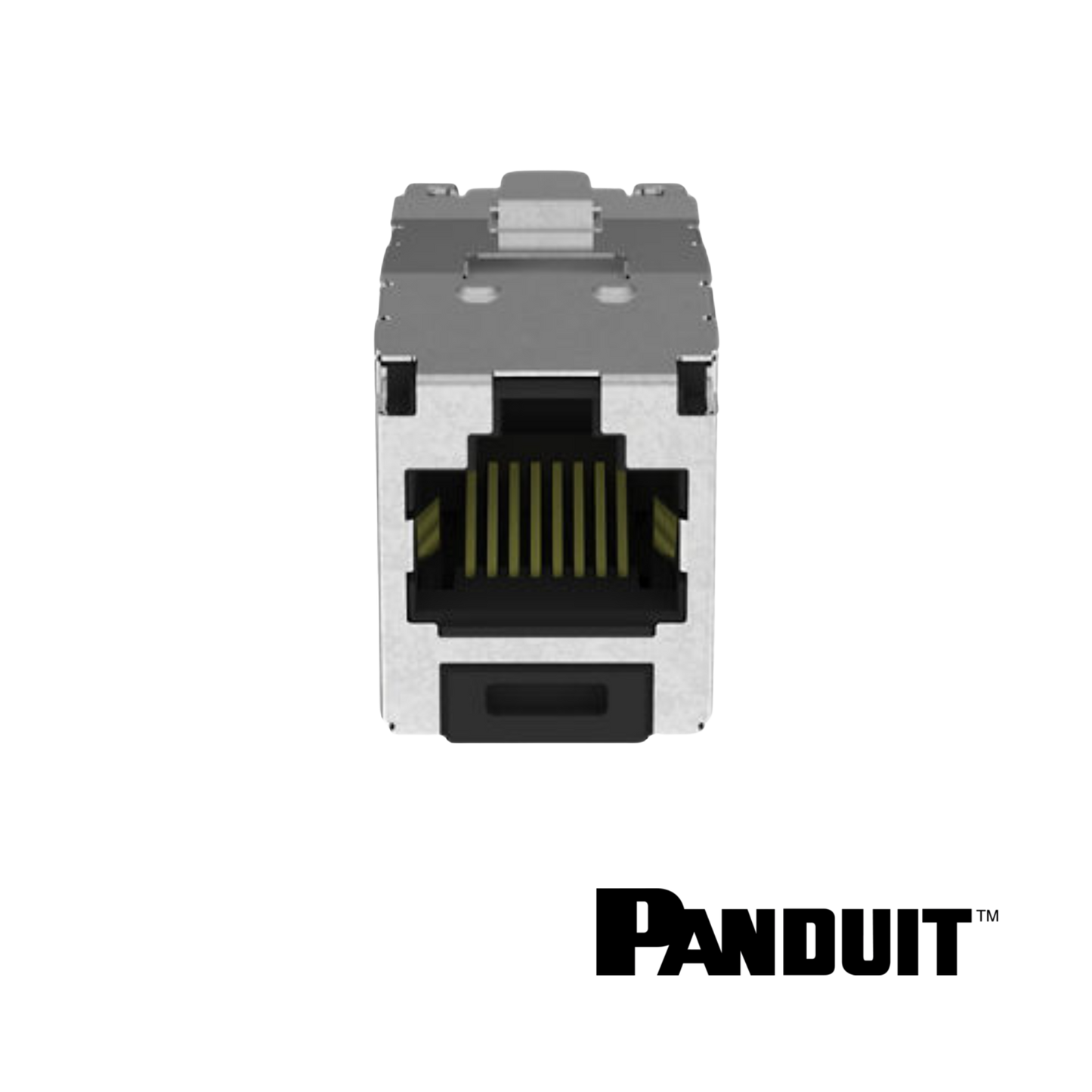

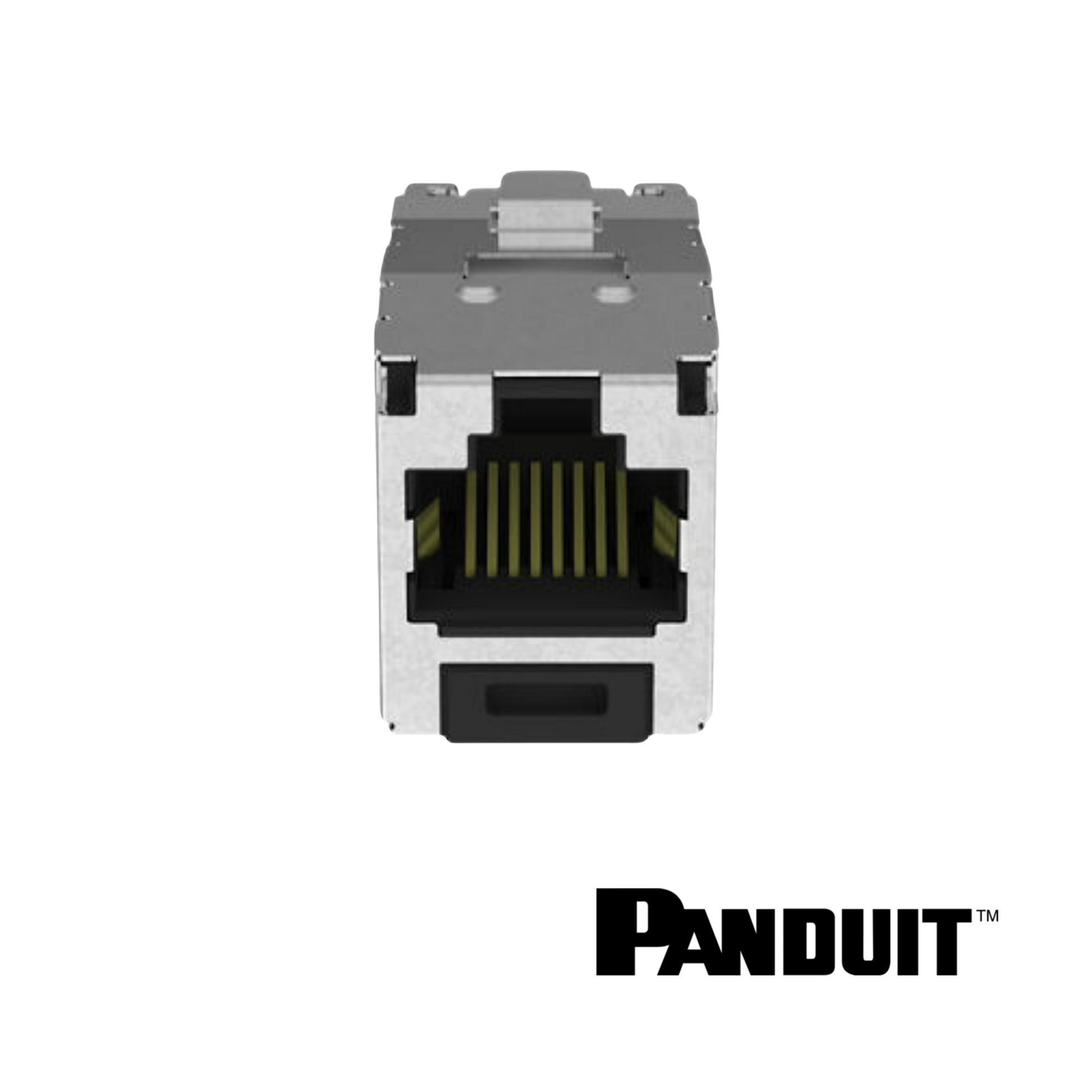

PANDUIT Mini-Com® Cat6a 10Gig Universal Module | Shielded

Panduit’s Mini-Com® TX6A™ 10Gig™ Shielded Jack Modules are designed for use exclusively as part of the TX6A 10Gig Shielded Copper Cabling System. These jack modules provide a cost-effective solution for achieving IEEE 10GBASE-T performance with exceptional reliability, security, and electromagnetic interference (EMI) suppression.

The TX6A 10Gig Shielded Jack Module is an 8-position, shielded jack that terminates 4-pair, 22–26 AWG, 100-ohm shielded twisted pair cable without the need for a punchdown tool. A forward-motion termination method maintains cable pair geometry while eliminating conductor untwist, to ensure consistent electrical performance and faster, more efficient installations. The blue, color-coded termination cap highlights the Category 6A performance and includes a universal wiring label supporting both T568A and T568B wiring schemes.

Certified to ISO/IEC 11801 Class EA, ANSI/TIA-568.2-D Category 6A, and IEEE 802.3an-2006 standards, Mini-Com TX6A 10Gig Shielded Jack Modules are 100% performance tested, providing confidence that each module meets critical electrical transmission requirements.
