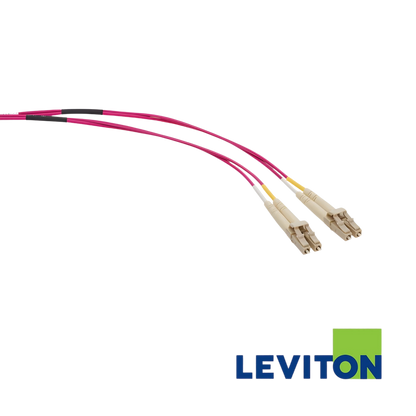

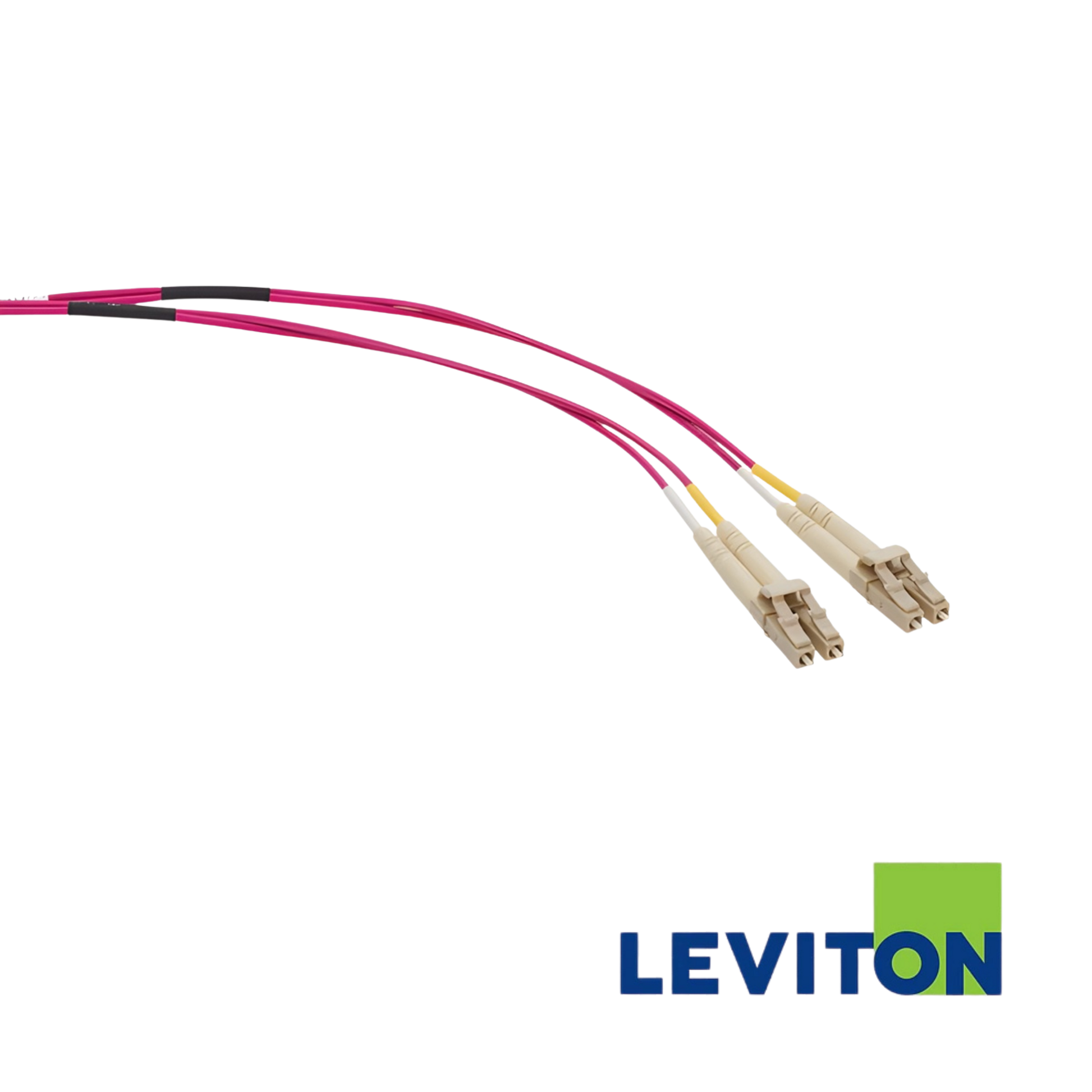

LEVITON OM4 VPC Fibre Optic Patch Lead

Leviton’s OM4 VPC Fibre Optic Patch Leads deliver reliable, high-performance connectivity across a wide range of structured cabling environments, including data centres, enterprise networks, CATV systems, PON, and FTTH applications. They support high-speed multimode transmission and are ideal for 10GbE, 40GbE, and 100GbE applications.

The VPC OM4 patch leads feature bend-insensitive OM4 multimode fiber, optimized for laser transmission while maintaining backward compatibility with existing multimode systems. Precision pre-radiused zirconia ceramic ferrules ensure consistent end-face geometry, resulting in low insertion loss of ≤0.25 dB (≤0.15 dB for low-loss options) and excellent repeatability over more than 500 mating cycles. Multimode return loss exceeds 26 dB, supporting stable optical performance in demanding environments.

Each patch lead is manufactured with a Low Smoke Halogen Free (LSHF/LSZH/HFFR-LS) jacket, enhancing safety in enclosed spaces. Duplex clips are included for LC and SC configurations, while color-coded jackets and boots simplify fiber identification and network management. Every assembly is 100% factory tested, individually packaged, and supplied with wrap labels and serial numbers for full traceability to test data.

Compliant with ANSI/TIA-568.3-E, ISO/IEC 11801-1, and relevant IEC and TIA connector standards, Leviton OM4 VPC Fibre Optic Patch Leads provide a dependable, standards-based solution for modern high-bandwidth optical networks.
