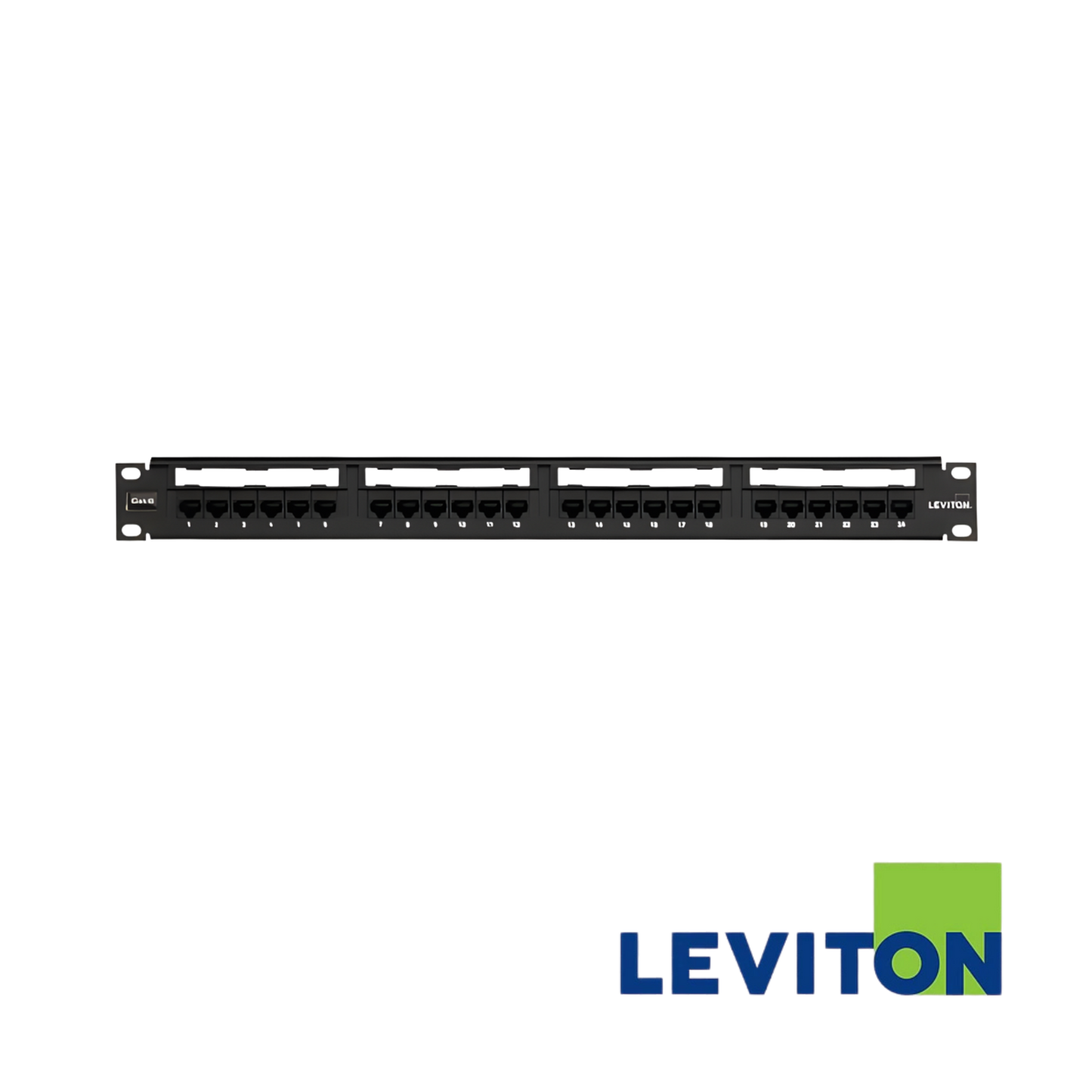

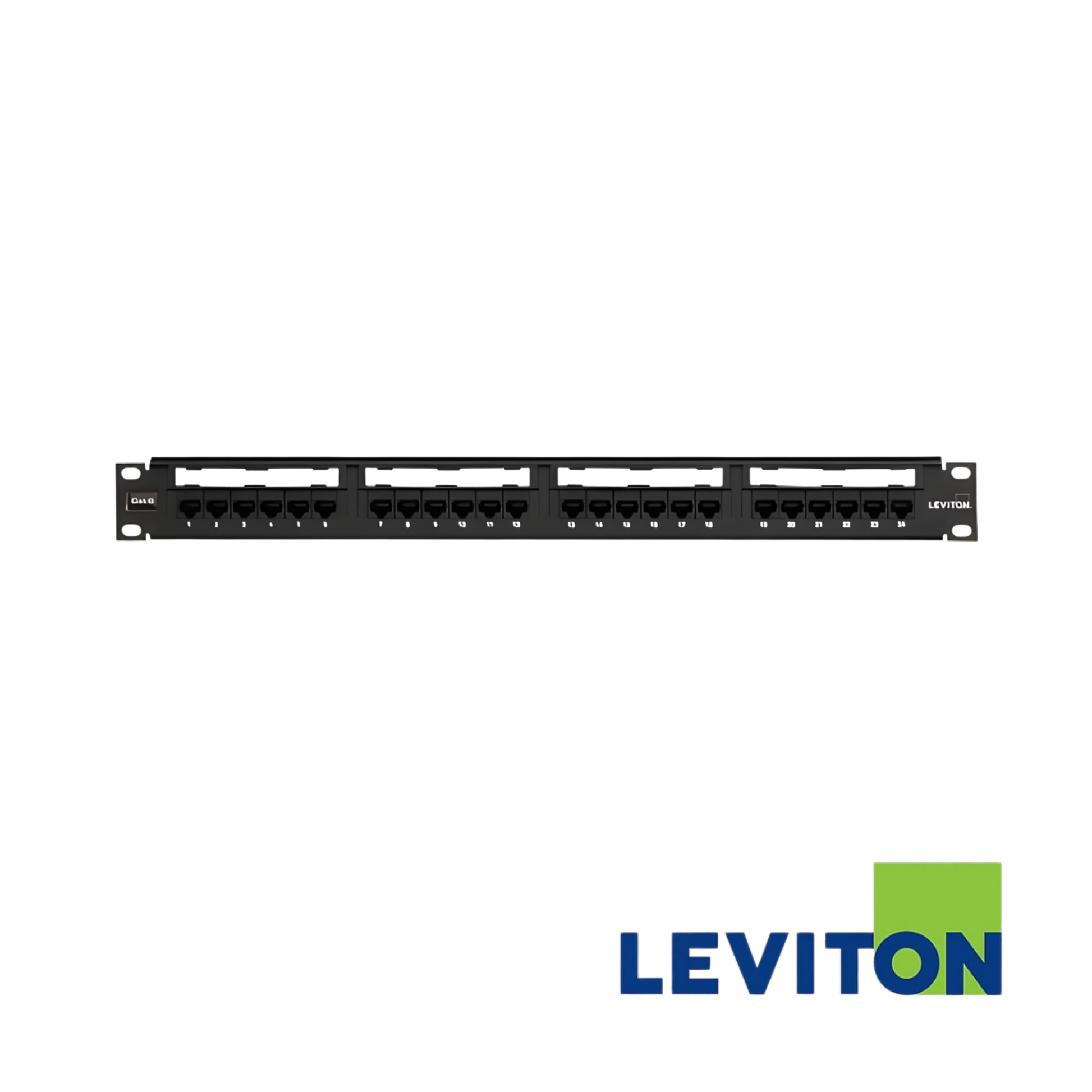

LEVITON Cat6 24 Port 1U Punchdown Patch Panel | Unshielded | Black | With Cable Management

The Leviton Cat 6 24 Port 1U Punchdown Patch Panel is a high-quality, unshielded connectivity solution, offering reliable performance in modern structured cabling systems. Designed for installation in standard 19-inch racks and cabinets, this flat 1U panel supports high-megabit applications such as Gigabit Ethernet and delivers long-term durability and ease of use.

It exceeds ANSI/TIA-568.2-D Category 6 and ISO/IEC 11801-1 Class E performance requirements and features Leviton’s patented Retention Force Technology™. This protects contact tines from damage and promotes consistent electrical performance throughout the life of the system, even after multiple re-terminations.

Installer efficiency is a key advantage of this patch panel. Standard 110-style IDC punchdown terminations on the rear follow the familiar colour sequence (blue, orange, green, brown) from left to right, simplifying installation and reducing errors. Universal T568A and T568B wiring cards are included, along with white IDC modules and colour-coded front window labels for clear port identification. The integrated cable management clip secures cables quickly without the need for additional ties or wraps.

Fire-retardant plastic components meet UL 94V-0 flammability ratings. The panel is supplied with a factory-assembled 300 mm, 4 mm² (12 AWG) earthing jumper for grounding flexibility and enhanced safety.

Optimized for Power over Ethernet, the panel exceeds IEEE 802.3bt standards, supporting up to 0.5 amps per conductor (100 watts) continuously, and is ETL verified for IEEE 802.3bt Type 4 PoE applications.
