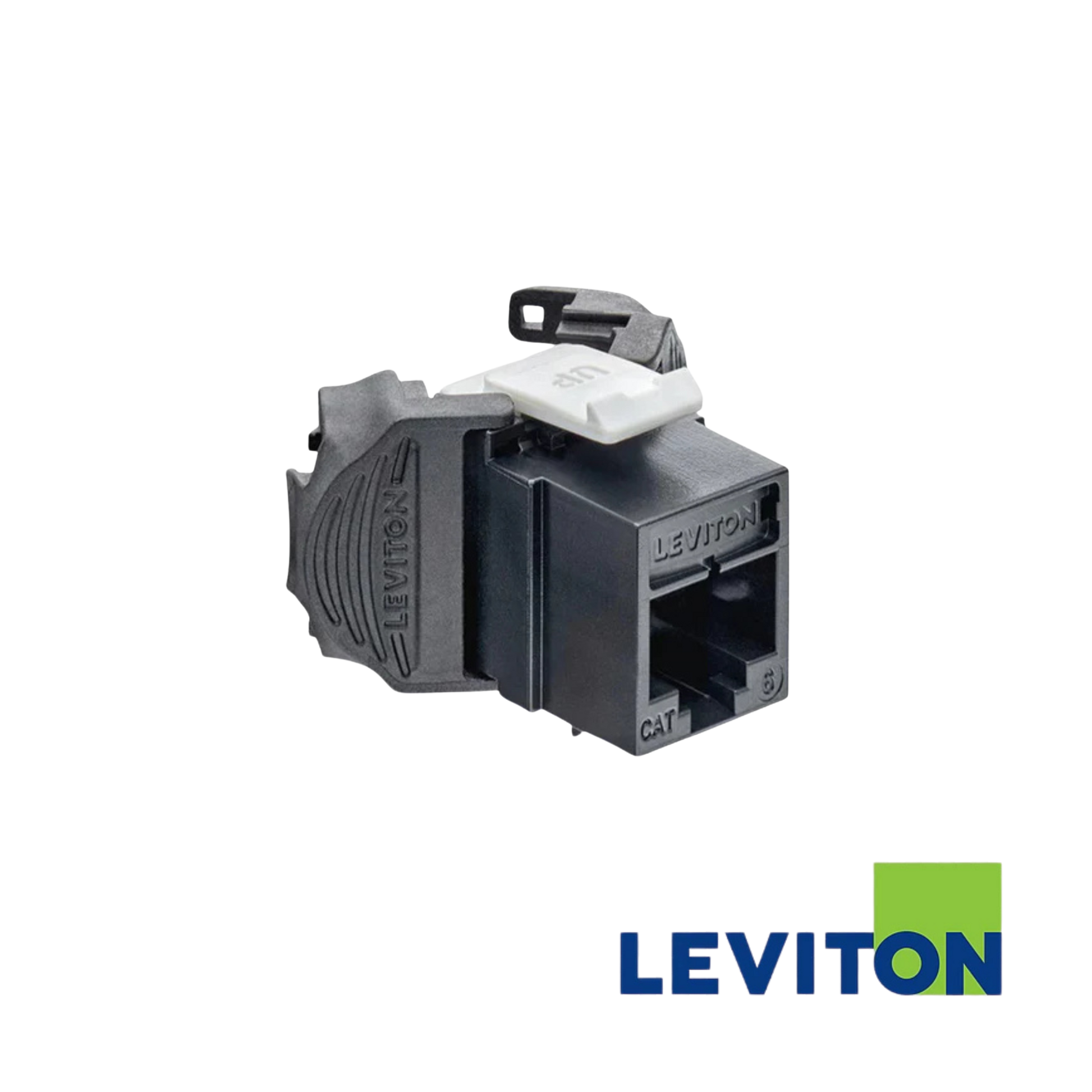

LEVITON AX0 Cat6A Quickport Jack | UTP

Leviton’s AX0 Cat 6A UTP Jack is designed to support 10GBASE-T networks in environments where Alien Crosstalk (AXT) suppression is essential. Engineered for reliability and flexibility, this jack is ideal for high-density installations and advanced network infrastructures that require consistent signal integrity without the use of shielding.

The AX0 Cat 6A UTP Jack meets or exceeds industry requirements for channel and component-level electrical transmission performance as defined by ANSI/TIA-568.2 Category 6A, ISO/IEC 11801-1 Class EA, and EN 50173-1 Class EA. It is compliant with ANSI/TIA-1096-A, c(UL)us Listed, and independently verified for electrical transmission performance and power delivery. The jack also supports IEEE 802.3 PoE Types 1, 2, 3, and 4, delivering up to 100 watts to power today’s PoE-enabled devices.

It is made using fire-retardant plastics with a UL 94V-0 flammability rating and its noise-isolating polycarbonate jack doors are specifically designed to provide excellent Alien Crosstalk suppression, helping maintain performance in tightly packed network environments. Tool-free termination and re-termination speed up installation, and the jack is rated to withstand up to 20 re-termination cycles.

The AX0 Cat 6A UTP Jack accommodates 26 to 22 AWG solid or stranded conductors, supporting a wide range of cable types and installation conditions, including shallow boxes, compact enclosures, and tight bend-radius applications. Jack contacts are tested to exceed 750 plug-mating cycles, ensuring long-term system longevity.

It is universally wired to support both T568A and T568B schemes and is fully compatible with the Leviton QUICKPORT™ range.
