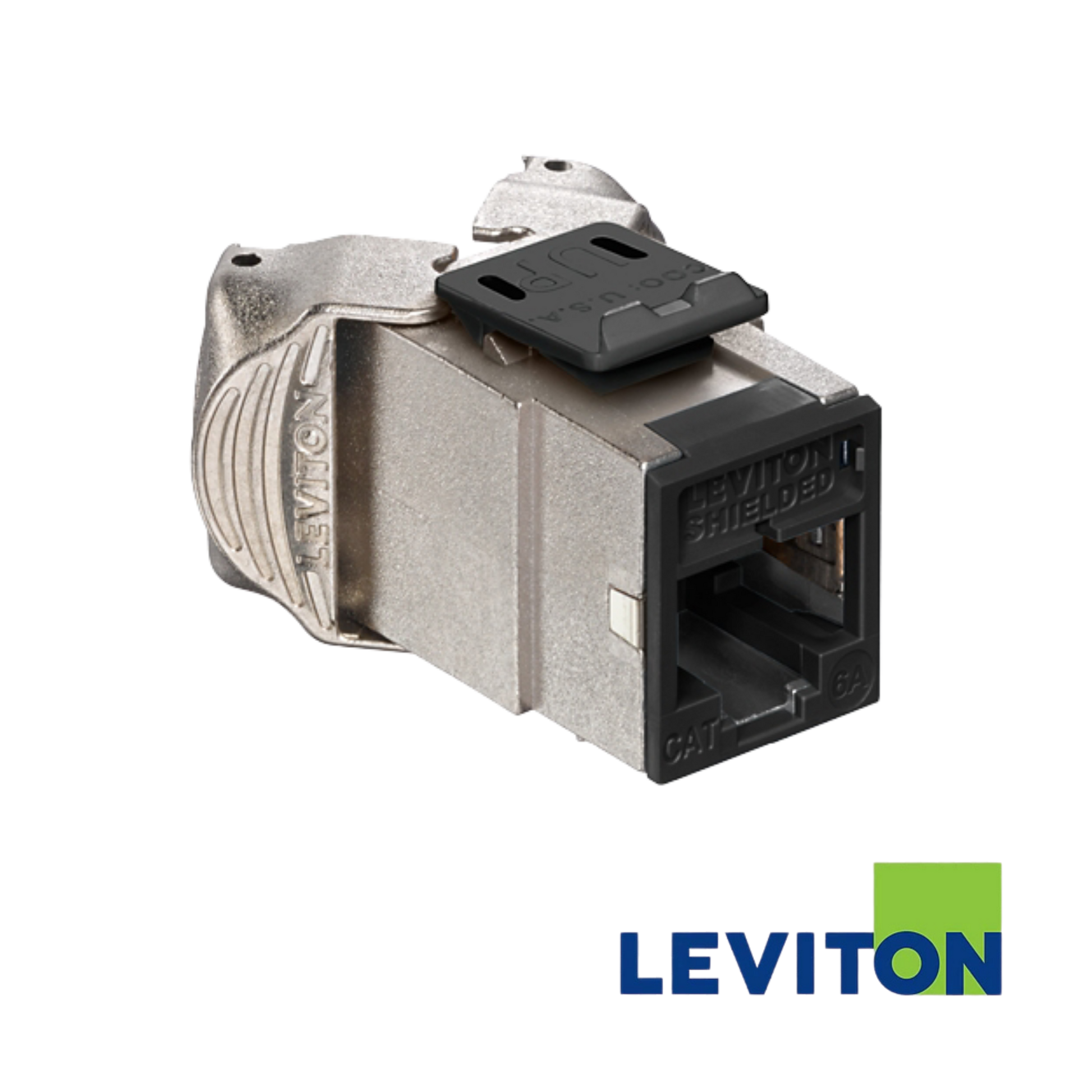

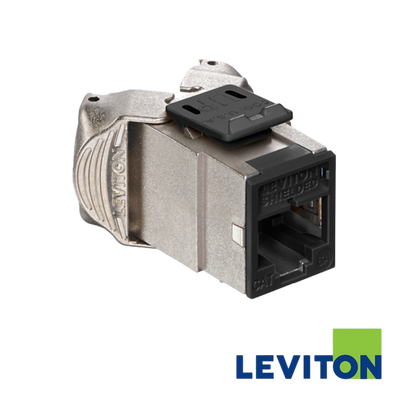

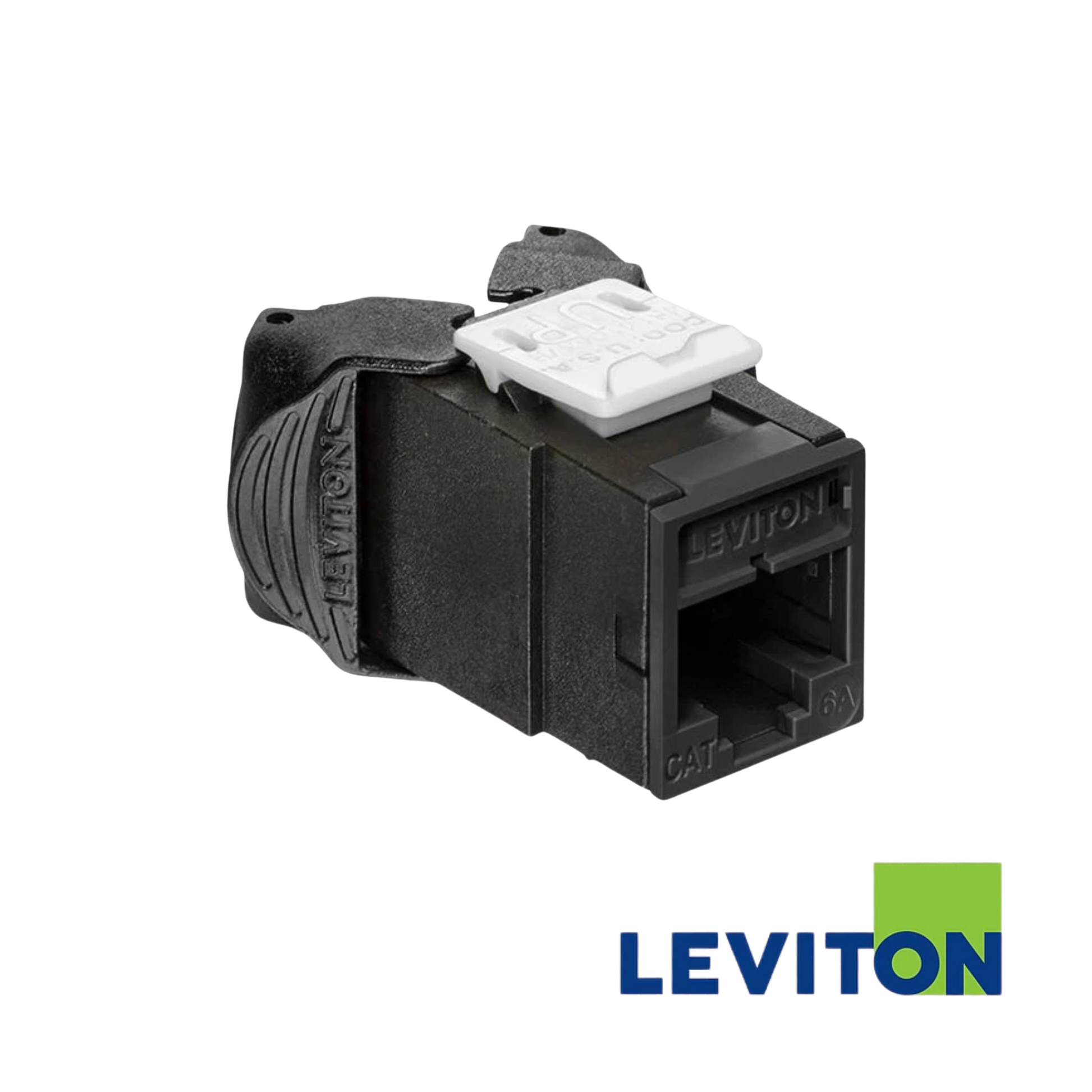

LEVITON Atlas X1 Cat6A Quickport Jack | Shielded

Leviton’s ATLAS-X1™ Cat 6A QuickPort® Shielded Jack supports reliable 10GBASE-T networks in electrically demanding and security-sensitive environments. As part of Leviton’s complete ATLAS-X1 Cat 6A shielded system, this jack is ideal for government, healthcare, manufacturing, and other installations where protection from EMI/RFI and superior alien crosstalk (AXT) suppression are critical.

The shielded jack meets or exceeds the electrical transmission performance requirements of ANSI/TIA-568.2-D Category 6A, ISO/IEC 11801-1 Class EA, and EN 50173-1 Class EA. It is compliant with ANSI/TIA-1096-A, c(UL)us Listed, and independently verified for both electrical performance and power delivery. Designed to fully support IEEE 802.3 PoE Types 1, 2, 3, and 4 (up to 100 watts), the jack delivers dependable performance for high-power applications.

The jack features a die-cast metal body to protect from EMI/RFI. It also dissipates up to 53% more heat than traditional plastic designs—minimizing thermal stress in PoE installations.

The ATLAS-X1 jack supports tool-free termination and re-termination and accommodates both T568A and T568B wiring schemes. It terminates 26 to 22 AWG solid or stranded conductors and is built for longevity, with robust IDCs rated for 20 re-terminations and contacts tested to 3,000 mating cycles. It is available in 13 ANSI/TIA-606-C compatible colours, standard or shuttered styles, and optional interchangeable icons.
