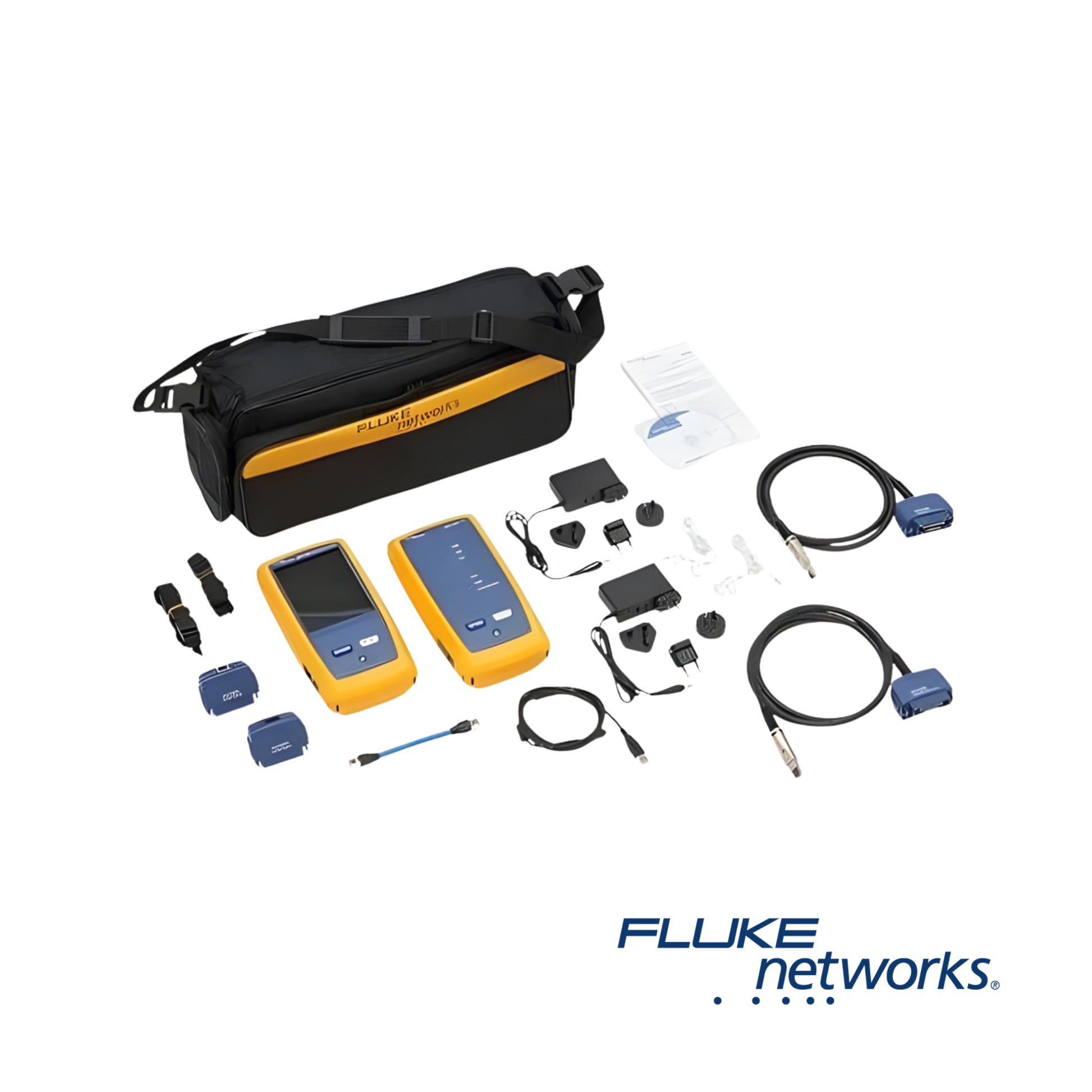

Fluke Networks DSX-602 CableAnalyzer™ - DSX-602-PRO INT
Fluke Networks DSX-602 CableAnalyzer™ - DSX-602-PRO INT
Out of stock — available to order, dispatched in approx. 30 working days
SKU: DSX-602-PRO INTMFN: DSX-602-PRO INT
Regular price
£8,915.00 GBP
Regular price
Sale price
£8,915.00 GBP
Ex VAT
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Fluke Networks DSX-602 CableAnalyzer™ is a copper certification tester built on the Versiv™ platform. It certifies twisted pair cabling from Cat 3/Class C through Cat 6A/Class EA with a maximum frequency of 500 MHz, ensuring compliance with TIA and ISO/IEC standards for up to 10 Gigabit Ethernet applications.
The DSX-602-PRO performs two-way Autotests in 9 seconds for Cat 6/Class E and 10 seconds for Cat 6A/Class EA, allowing technicians to certify hundreds of links per day. HDTDR and HDTDX diagnostics pinpoint the exact location of faults, eliminating guesswork and reducing troubleshooting time. Test parameters include wire map, length, propagation delay, delay skew, DC loop resistance, insertion loss, return loss, NEXT, PS NEXT, ACR-N, ACR-F, and more.
It has a storage capacity for roughly 12,000 Cat6A results and is powered by a lithium-ion battery with up to 8 hours of operation.
The DSX-602-PRO performs two-way Autotests in 9 seconds for Cat 6/Class E and 10 seconds for Cat 6A/Class EA, allowing technicians to certify hundreds of links per day. HDTDR and HDTDX diagnostics pinpoint the exact location of faults, eliminating guesswork and reducing troubleshooting time. Test parameters include wire map, length, propagation delay, delay skew, DC loop resistance, insertion loss, return loss, NEXT, PS NEXT, ACR-N, ACR-F, and more.
It has a storage capacity for roughly 12,000 Cat6A results and is powered by a lithium-ion battery with up to 8 hours of operation.
